Industrial Biomass Boiler With PLC Automation Modular Water Tube High Efficiency Steam System

最小注文数量 :	1	価格 :	交渉可能
パッケージの詳細 :	輸送手段によって異なる梱包方法が採用されます	受渡し時間 :	30日
支払条件 :	L/C、D/A、D/P、T/T

起源の場所:	中国	ブランド名:	Xinjie

詳細情報
設計効率:	85%以上の高効率	メンテナンス間隔:	6か月ごとまたは2000稼働時間ごと
材料:	Q345R鋼板、高品質	設置タイプ:	室内または室外設置オプション
排出基準:	EU EcoDesign および EPA 基準に準拠	設計圧力:	低圧 0.4Mpa から 2.5Mpa
ashRemoval:	自動または手動の灰抽出システム	使用圧力:	1.0-2.5 Mpa
制御システム:	タッチスクリーンインターフェースを備えた自動PLC制御	ignitionType:	自動電気点火
ハイライト:	2.5 MPA industrial biomass boiler , 1MPA industrial biomass boiler , 4t/h biomass boiler

製品の説明

Product Introduction

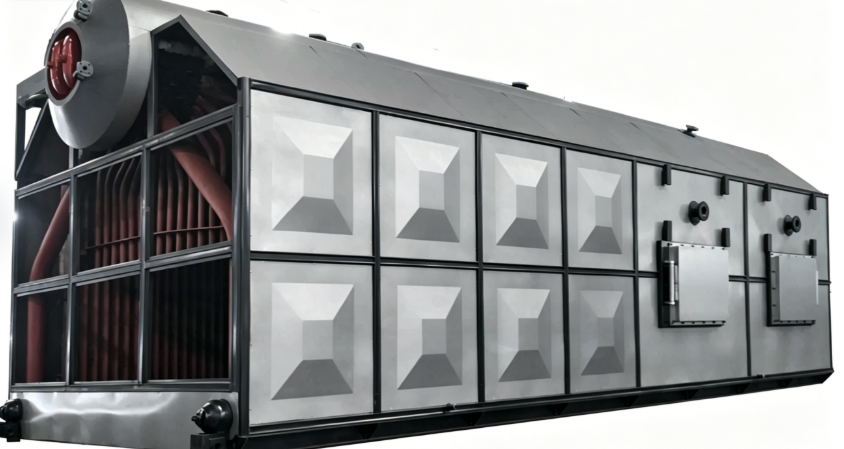

The Biomass Boiler adopts a double drum water tube structure, ensuring efficient heat transfer and high steam output. Equipped with a PLC automation system, this Biomass Boiler allows precise control of combustion, fuel feeding, and operation parameters, improving safety and efficiency. The modular design simplifies transportation and installation, reducing project time and cost. Manufactured from high quality carbon steel and advanced welding technology, this Biomass Boiler offers excellent durability and resistance to high temperature and pressure. The optimized combustion chamber ensures complete fuel burning and enhanced thermal efficiency

Key Features

Compact structure with minimal floor space requirements
High assembly degree for reduced installation time and costs
Optimized heat transfer surfaces for rapid heating and pressurization
Independent wind box system with adjustable air volume
Stepless speed regulation grate suitable for wide coal variety
Complete automatic control system with monitoring instruments
High automation level ensuring safe and reliable operation

Industrial Applications

Industrial Heating: Food processing, pulp and paper production, chemical manufacturing
Waste Treatment: Agricultural waste, crop straw, rice husks, wood processing residues
Power Generation: Biomass power generation through steam turbine systems
Environmental Benefits: Reduced carbon emissions and air pollution compared to coal boilers

Technical Specifications

Specification	SZL4 Models	SZL6 Models	SZL10 Models	SZL15 Models	SZL20 Models
Rated Evaporation Capacity (t/h)	4	6	10	15	20
Rated Working Pressure (MPa)	1.25	1.25	1.25	1.25	1.25
Rated Steam Temperature (°C)	194	194	194	194	194
Boiler Efficiency (%)	>78	>80	>80	>80	>80
Fuel Consumption (Kg/h)	640	945	1545	2185	3085
Auxiliary Equipment
Induced Draft Fan Power (kW)	22	37	55	75	90
Blower Power (kW)	7.5	7.5	15	30	37
Feed Water Pump Power (kW)	7.5	11	15	25	30

Operational Advantages

The Biomass Boiler provides high thermal efficiency by utilizing renewable biomass fuels, reducing fuel costs and improving energy utilization. Its advanced combustion system ensures complete burning and stable heat output.

Another key advantage of the Biomass Boiler is its intelligent PLC control system, which enables automatic operation, precise monitoring, and improved safety. This reduces manual intervention and enhances operational efficiency.

Additionally, the Biomass Boiler features a modular design that simplifies installation and transportation. Its durable construction ensures long service life and reliable performance in harsh industrial environments. Low emissions and eco friendly operation make this Biomass Boiler suitable for industries focused on sustainable development.

Global Market Presence

The Biomass Boiler is widely exported to regions including Asia, Europe, North America, South America, and the Middle East. With increasing demand for automated and energy efficient systems, the Biomass Boiler has become a preferred choice for industries worldwide.

In conclusion, the SZL Series Industrial Biomass Boiler with PLC automation and modular water tube system provides a reliable, efficient, and intelligent Biomass Boiler solution for global industrial steam applications.
